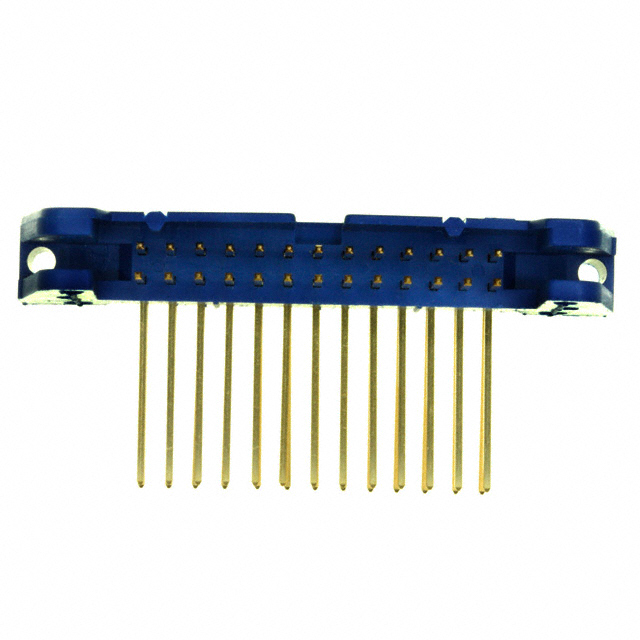

3726597CWN-320-26-0000 bildCW Industries

CWN-320-26-0000

Begär offert

Fyll i alla nödvändiga fält med din kontaktinformation. Klicka "Skicka RFQ" Vi kommer att kontakta dig inom kort via e -post.Eller maila oss:info@ftcelectronics.com

Referenspris (i amerikanska dollar)

I lager
1+
$4.30
10+
$4.128
100+
$3.44
500+
$2.924
1000+
$2.494
Förfrågan Online
Specifikationer
  • Artikelnummer
    CWN-320-26-0000
  • Tillverkare / Brand
  • Lagerkvantitet
    I lager
  • Beskrivning
    CONN HDR 26PIN RT ANG WIRE WRAP
  • Ledningsfri status / RoHS-status
    Blyfri / Överensstämmer med RoHS
  • Datablad
  • Ecad -modell
  • Spänningsvärde
    -
  • Uppsägning
    Wire Wrap
  • Stil
    Board to Cable/Wire
  • omgivande
    Shrouded - 4 Wall
  • Serier
    CWN
  • Row Spacing - Parning
    0.100" (2.54mm)
  • Pitch - Parning
    0.100" (2.54mm)
  • Förpackning
    Bulk
  • Total kontaktlängd
    -
  • Andra namn
    CHA26G
    CWN320260000
    IDH-26K-WR-T
    R258
  • Driftstemperatur
    -55°C ~ 125°C
  • Antal rader
    2
  • Antal positioner laddade
    All
  • Antal positioner
    26
  • Monteringstyp
    Through Hole, Right Angle
  • Fuktkänslighetsnivå (MSL)
    1 (Unlimited)
  • Material Brännbarhetsbedömning
    UL94 V-0
  • Mated Stacking Heights
    -
  • Tillverkarens normala ledtid
    10 Weeks
  • Ledningsfri status / RoHS-status
    Lead free / RoHS Compliant
  • Isoleringsmaterial
    Thermoplastic
  • Isolationshöjd
    0.291" (7.40mm)
  • Isoleringsfärg
    Blue
  • Ingress Protection
    -
  • Funktioner
    Keying Slot, Mounting Flange
  • Fästningstyp
    Push-Pull
  • detaljerad beskrivning
    Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)
  • Nuvarande omdöme
    1A
  • Kontakt typ
    Male Pin
  • Kontakta Form
    Circular
  • Kontaktmaterial
    Phosphor Bronze
  • Kontakta Längd - Post
    0.610" (15.49mm)
  • Kontakta Längd - Parning
    0.240" (6.10mm)
  • Kontakt Slutför tjocklek - Post
    50.0µin (1.27µm)
  • Kontakt Slutför tjocklek - Parning
    10.0µin (0.25µm)
  • Kontakt Finish - Post
    Nickel
  • Kontakt Avsluta - Parning
    Gold
  • Connector Type
    Header
